redis-短信验证登录

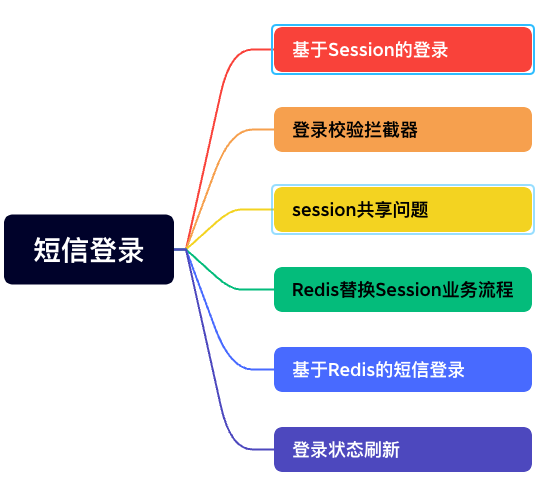

0 目录

1 基于session实现登录

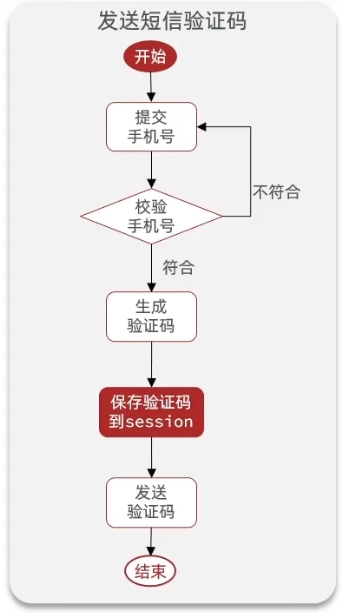

1.1 发送短信验证码

即：将生成的验证码保存到session中

@Override
public Result sendCode(String phone, HttpSession session) {
    //1.校验手机号
    if(RegexUtils.isPhoneInvalid(phone)){
        //2.如果不符合，返回错误信息
        return Result.fail("手机号格式错误!");
    }
    //3.符合，生成验证码
    String code = RandomUtil.randomNumbers(6);
    //4.保存验证码到session
    session.setAttribute("code",code);
    //5.模拟发送验证码
    log.debug("发送短信验证码成功，验证码：{}"+code);
    //返回ok
    return Result.ok();
}

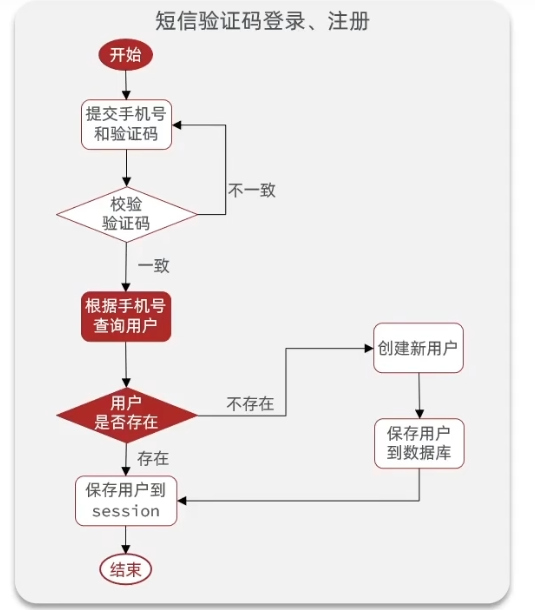

1.2 短信验证码注册登录

即：校验完成验证码之后，根据用户手机号去数据库查询，查询用户如果不存在，那么就创建用户，将创建的心用户保存到数据库中；如果查询到用户存在，那么将用户信息保存到session中

@Data
public class LoginFormDTO {
    private String phone;
    private String code;
    private String password;
}


@Override
public Result login(LoginFormDTO loginForm, HttpSession session) {
    //1.校验手机号
    String phone = loginForm.getPhone();
    if(RegexUtils.isPhoneInvalid(phone)){
        //如果不符合，返回错误信息
        return Result.fail("手机号格式错误！");
    }
    //2.校验验证码
    Object cacheCode = session.getAttribute("code");
    String code = loginForm.getCode();
    if(cacheCode==null ||! cacheCode.toString().equals(code)){
        //3.不一致，报错
        return Result.fail("验证码错误!");
    }
    //4.一致，根据手机号查询用户 select * from tb_user where phone = ?
    User user = query().eq("phone", phone).one();
    //5.判断用户是否存在
    if(user==null) {
        //6.不存在，创建新用户并保存
        user=createUsrWithPhone(phone);
    }
    //7.保存用户信息到session中
    session.setAttribute("user",user);
    return null;
}

private User createUsrWithPhone(String phone) {
    //1.创建用户
    User user = new User();
    user.setPhone(phone);
    user.setNickName(USER_NICK_NAME_PREFIX+RandomUtil.randomString(10));
    //2.保存用户
    save(user);
    return user;
}

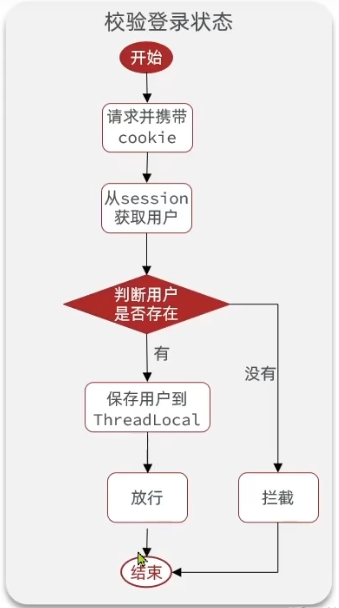

1.3 校验登录状态

即：从拦截器拦截请求之后，从request中获取到cookie，由cookie获取session进而获取到用户信息，此时判断用户是否存在，如果用户不存在进行拦截，用户存在就将用户数据保存到ThreadLocal中。

public class UserHolder {
    private static final ThreadLocal<UserDTO> tl = new ThreadLocal<>();

    public static void saveUser(UserDTO user){
        tl.set(user);
    }

    public static UserDTO getUser(){
        return tl.get();
    }

    public static void removeUser(){
        tl.remove();
    }
}

2 登录校验拦截器

2.1 拦截器

public class LoginInterceptor implements HandlerInterceptor {
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        //1.获取session
        HttpSession session = request.getSession();
        //2.获取session中的用户
        Object user = session.getAttribute("user");
        //3.判断用户是否存在
        if(user==null) {
            //4.不存在，拦截,返回401状态码，代表未授权
            response.setStatus(401);
            return false;
        }
        //5.存在，保存用户信息到ThreadLocal
        UserHolder.saveUser((UserDTO) user);
        //6.放行
        return true;
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        UserHolder.removeUser();
    }
}

2.2 添加拦截器

@Configuration
public class MvcConfig implements WebMvcConfigurer {
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(new LoginInterceptor())
                .excludePathPatterns("/user/code","/user/login","/blog/hot","/shop/**","/shop-type/**","/voucher/**","/upload/**");
    }
}

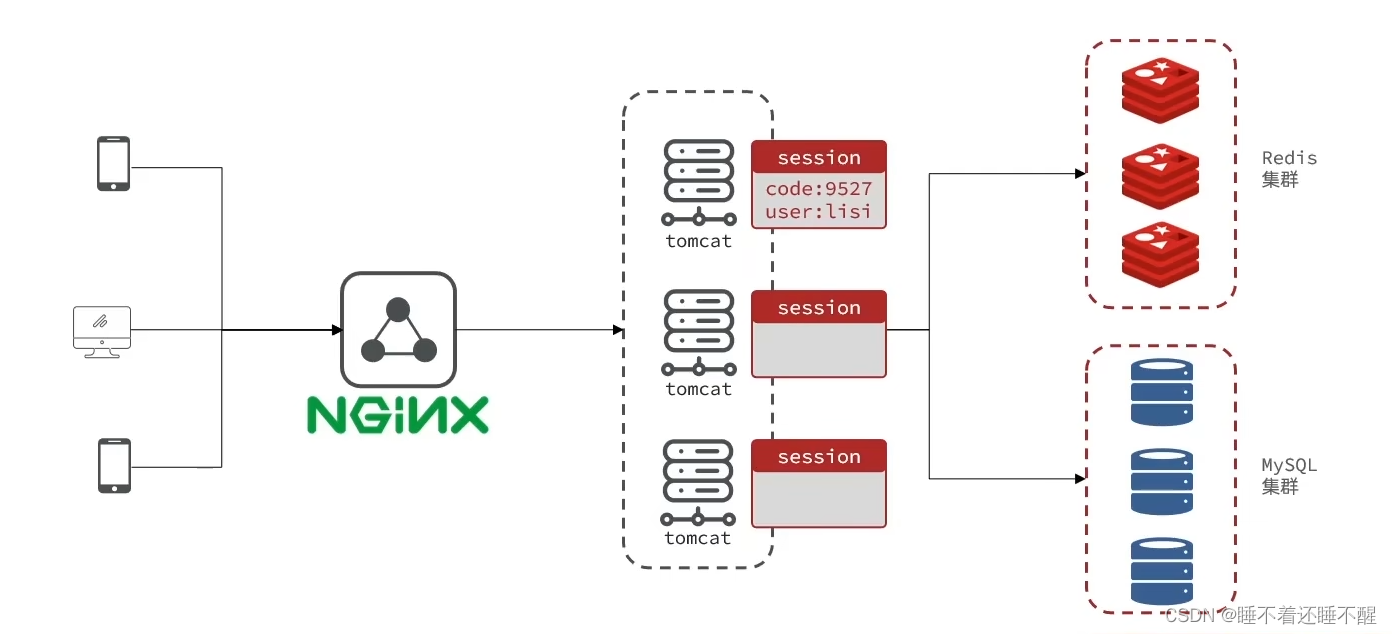

3 session共享问题

session共享问题：多台Tomcat并不共享session存储空间，当请求切换到不同tomcat服务时导致数据丢失的问题

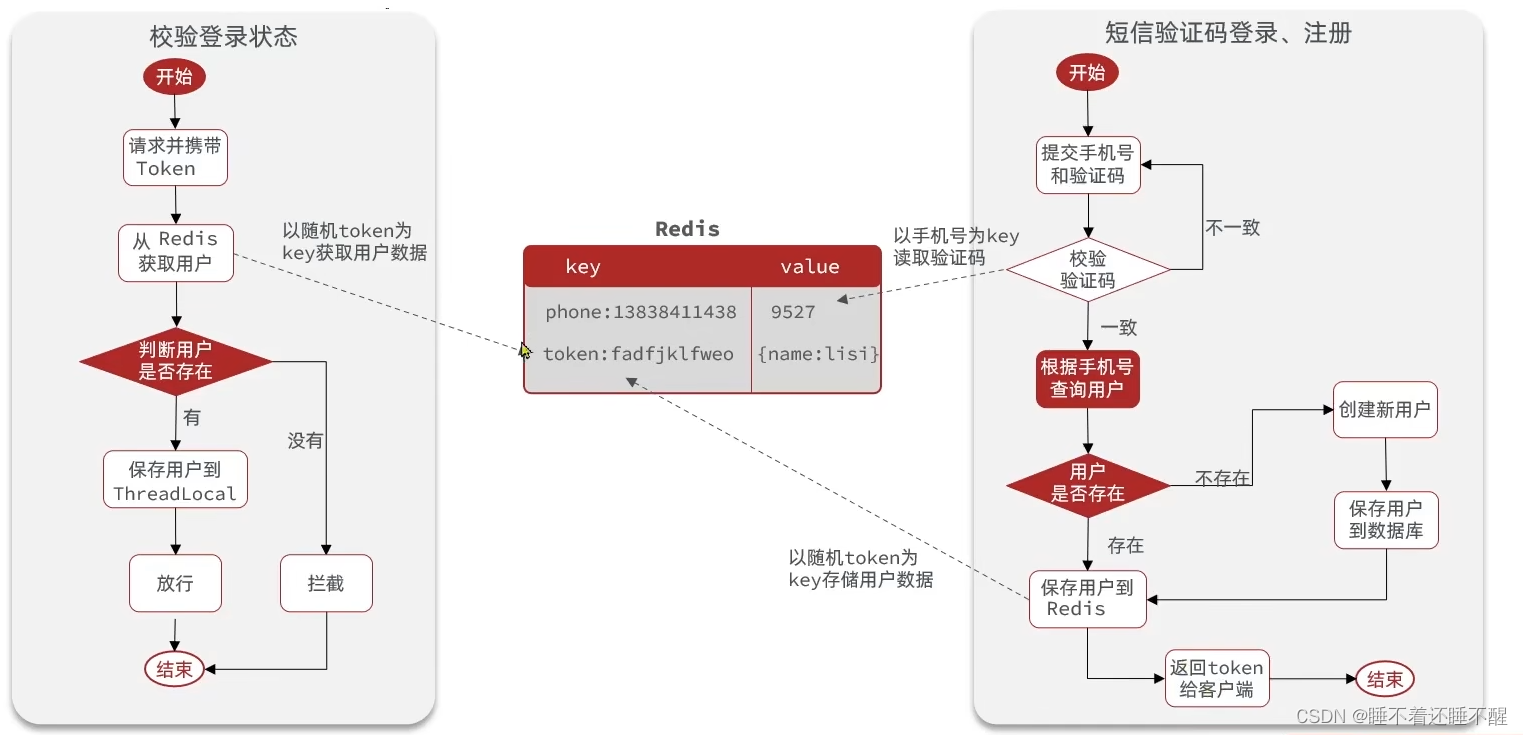

4 Redis替换session业务

5 基于Redis实现短信登录

5.1 发送验证码

流程修改：生成验证码后，将验证码放入至redis并且设置过期时间

@Override
public Result sendCode(String phone, HttpSession session) {
    //1.校验手机号
    if(RegexUtils.isPhoneInvalid(phone)){
        //2.如果不符合，返回错误信息
        return Result.fail("手机号格式错误!");
    }
    //3.符合，生成验证码
    String code = RandomUtil.randomNumbers(6);
    //4.保存验证码到redis中
    stringRedisTemplate.opsForValue().set(LOGIN_CODE_KEY+phone,code,LOGIN_CODE_TTL, TimeUnit.MINUTES);
    //5.发送验证码
    log.debug("发送短信验证码成功，验证码：{}"+code);
    //返回ok
    return Result.ok();
}

5.2 验证码登录

修改：校验的时候，客户端传入的验证码和redis中的验证码进行比对，随后需要将用户信息保存到redis中，此时选择使用Hash结构存储用户信息

@Override
public Result login(LoginFormDTO loginForm, HttpSession session) {
    //1.校验手机号
    String phone = loginForm.getPhone();
    if(RegexUtils.isPhoneInvalid(phone)){
        //如果不符合，返回错误信息
        return Result.fail("手机号格式错误！");
    }
    //2.校验验证码
    String cacheCode = stringRedisTemplate.opsForValue().get(LOGIN_CODE_KEY + phone);
    String code = loginForm.getCode();
    if(cacheCode==null ||!cacheCode.equals(code)){
        //3.不一致，报错
        return Result.fail("验证码错误!");
    }
    //4.一致，根据手机号查询用户 select * from tb_user where phone = ?
    User user = query().eq("phone", phone).one();
    //5.判断用户是否存在
    if(user==null) {
        //6.不存在，创建新用户并保存
        user=createUsrWithPhone(phone);
    }
    //保存用户信息到redis中
    //1.随机生成token，作为登录令牌
    String token = UUID.randomUUID().toString(true);  //true代表isSimple，即不带中划线
    //2.将User对象转为Hash存储
    UserDTO userDTO=BeanUtil.copyProperties(user,UserDTO.class);
    Map<String, Object> userMap = BeanUtil.beanToMap(userDTO,new HashMap<>(), CopyOptions.create().setIgnoreNullValue(true).setFieldValueEditor((fieldName,fieldValue)->fieldValue.toString()));
    String tokenKey=LOGIN_USER_KEY+token;
    //7.存储
    stringRedisTemplate.opsForHash().putAll(tokenKey,userMap);
    //设置token有效期
    stringRedisTemplate.expire(tokenKey,LOGIN_USER_TTL,TimeUnit.MINUTES);
    return Result.ok();
}

private User createUsrWithPhone(String phone) {
    //1.创建用户
    User user = new User();
    user.setPhone(phone);
    user.setNickName(USER_NICK_NAME_PREFIX+RandomUtil.randomString(10));
    //2.保存用户
    save(user);
    return user;
}

5.3 拦截器修改

修改：此时获取的用户信息是从redis中获取而不是从session获取。查询到用户信息之后将Hash数据转为UserDto对象，再存入ThreadLocal中，同时刷新token的有效期

public class LoginInterceptor implements HandlerInterceptor {

    private StringRedisTemplate stringRedisTemplate;

    public LoginInterceptor(StringRedisTemplate stringRedisTemplate){
        this.stringRedisTemplate=stringRedisTemplate;
    }

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        //1.获取请求头中的token
        String token = request.getHeader("authorization");
        //判断token是否为空
        if(StrUtil.isBlank(token)){
            response.setStatus(401);
            return false;
        }
        String key=LOGIN_USER_KEY+token;
        //2.基于token获取redis中的用户
        Map<Object, Object> userMap = stringRedisTemplate.opsForHash().entries(key);
        //3.判断用户是否存在
        if(userMap.isEmpty()){
            //不存在，拦截，返回401状态码
            response.setStatus(401);
            return false;
        }
        //5.存在，将查询到的Hash数据转为UserDTO对象
        UserDTO userDTO = BeanUtil.fillBeanWithMap(userMap, new UserDTO(), false);
        //6.保存用户到ThreadLocal
        UserHolder.saveUser(userDTO);
        //7.刷新token有效期
        stringRedisTemplate.expire(key,LOGIN_USER_TTL, TimeUnit.MINUTES);
        //8.放行
        return true;
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        UserHolder.removeUser();
    }
}

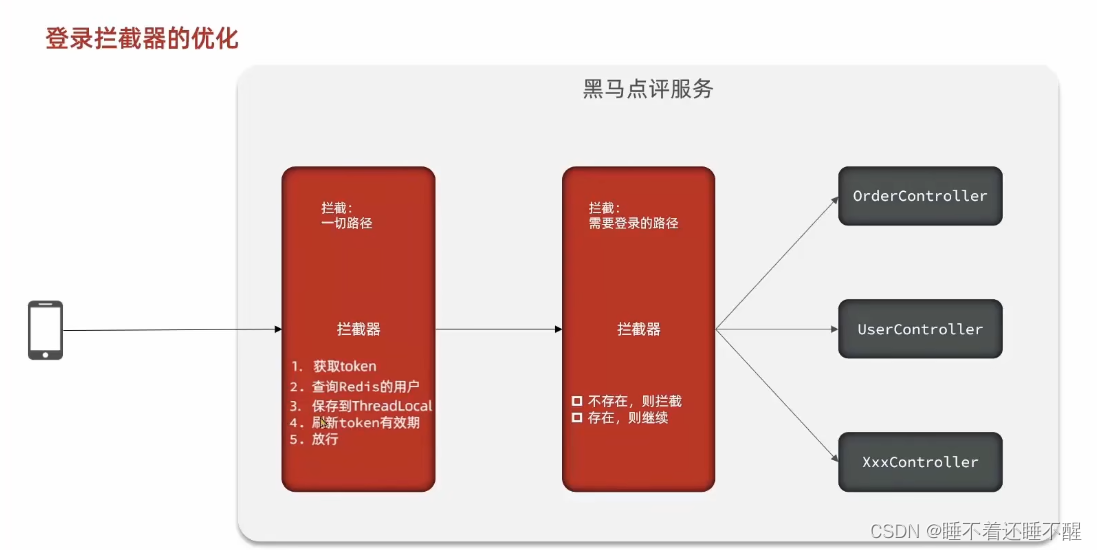

6 登录状态刷新问题

即：配置两个拦截器

拦截器1：拦截一切的请求，同时刷新token的有效期

拦截器2：拦截登录的请求

public class RefreshTokenInterceptor implements HandlerInterceptor {

  private StringRedisTemplate stringRedisTemplate;

  public RefreshTokenInterceptor(StringRedisTemplate stringRedisTemplate){
      this.stringRedisTemplate=stringRedisTemplate;
  }
  @Override
  public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {

      //1.获取请求头中的token
      String token = request.getHeader("authorization");
      //判断token是否为空
      if(StrUtil.isBlank(token)){
          return true;
      }
      String key=LOGIN_USER_KEY+token;
      //2.基于token获取redis中的用户
      Map<Object, Object> userMap = stringRedisTemplate.opsForHash().entries(key);
      //3.判断用户是否存在
      if(userMap.isEmpty()){
          return true;
      }
      //5.存在，将查询到的Hash数据转为UserDTO对象
      UserDTO userDTO = BeanUtil.fillBeanWithMap(userMap, new UserDTO(), false);
      //6.保存用户到ThreadLocal
      UserHolder.saveUser(userDTO);
      //7.刷新token有效期
      stringRedisTemplate.expire(key,LOGIN_USER_TTL, TimeUnit.MINUTES);
      //8.放行
      return true;
  }

  @Override
  public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
      UserHolder.removeUser();
  }
}

public class LoginInterceptor implements HandlerInterceptor {

  @Override
  public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
      //判断是否需要拦截（ThreadLocal中是否有用户）
      if(UserHolder.getUser()==null){
          //没有，需要拦截，设置状态码
          response.setStatus(401);
          return false;
      }
      //有用户，则放行
      return true;
  }

  @Override
  public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
      UserHolder.removeUser();
  }
}

@Configuration
public class MvcConfig implements WebMvcConfigurer {

  @Resource
  private StringRedisTemplate stringRedisTemplate;
  @Override
  public void addInterceptors(InterceptorRegistry registry) {
      registry.addInterceptor(new LoginInterceptor())
              .excludePathPatterns(
                      "/user/code",
                      "/user/login",
                      "/blog/hot",
                      "/shop/**",
                      "/shop-type/**",
                      "/voucher/**",
                      "/upload/**").order(1);
      registry.addInterceptor(new RefreshTokenInterceptor(stringRedisTemplate)).order(0);
  }
}

拦截器的顺序，order值越小越小执行
